SE-MDP-01 Intelligent High-Voltage Variable Frequency
Pulse Power System
I. Product Summary
Intelligent High-Voltage Variable Frequency Pulse Power System is the latest technology developed by our company independently, which applies widely in automatic control technology, power and electronic technology, communication technology, and computer technology.
The intelligent power system adopts the intelligent control mode combined with fuzzy mathematics and neural network to realize the power control, fault protection, optimal control and telecommunications of both high-voltage and low-voltage electric precipitator (ESP) equipment. It delivered a high frequency pulse power supply waveform with pure DC and variable amplitude, width, frequency, and period for ESP’s own electric field. Therefore, it can not only improve dust collection efficiency and reduce dust emissions, but also largely decrease its energy consumption. Compared with the conventional frequency power supply, this product can reduce the exiting ESP dust emissions by 40% to 70%.
Intelligent High-Voltage Variable Frequency Pulse Power System
or Both High-Voltage and Low-Voltage, and Its Controlling Equipment

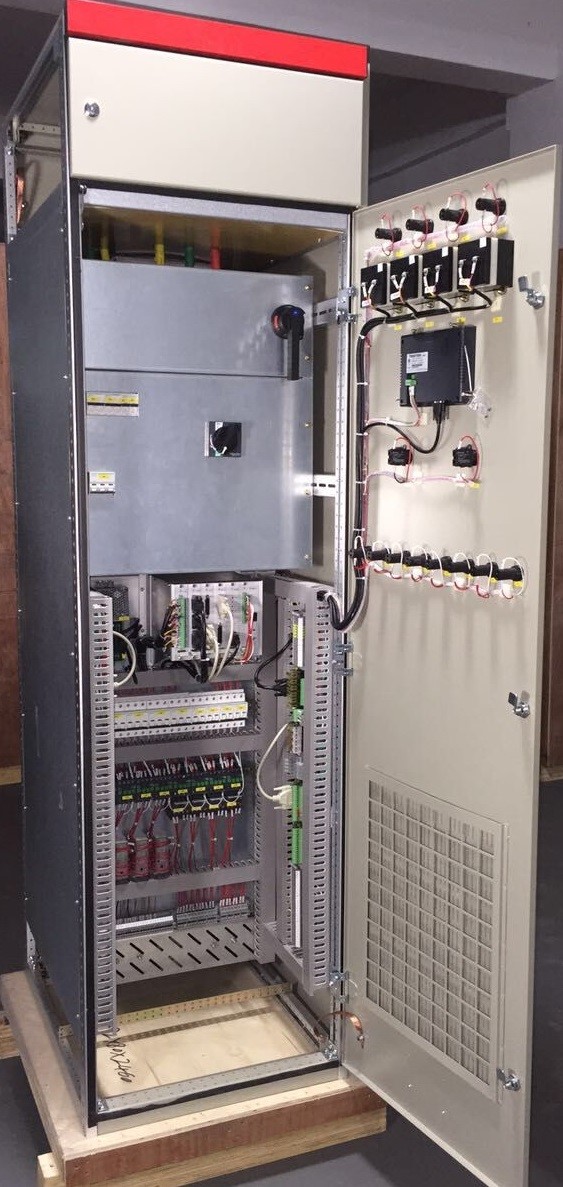

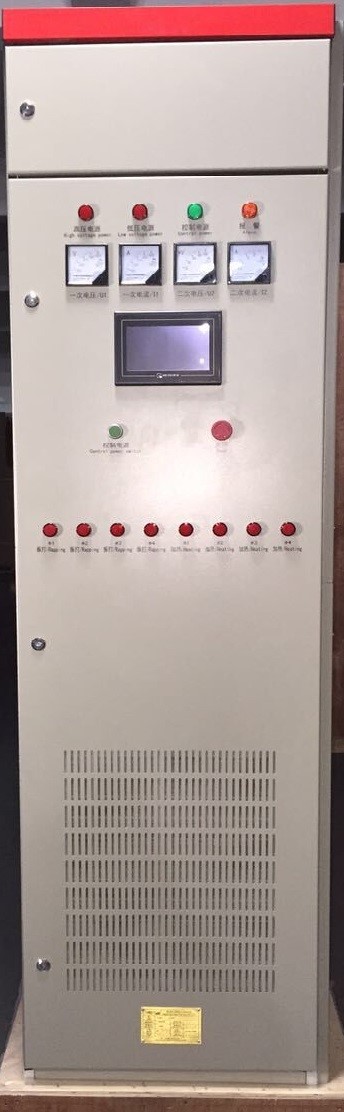

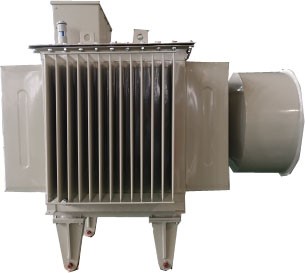

Frequency Modulation (FM) Rectifier Transformer
II. Main Components
Intelligent High-Voltage Variable Frequency Pulse Power System comprises:
1. Intelligent High-Voltage Variable Frequency Pulse Power System for Both High-Voltage and Low-Voltage, and Its Controlling Equipment
2. Frequency Modulation (FM) Rectifier Transformer
3. Supervisory Control Computer

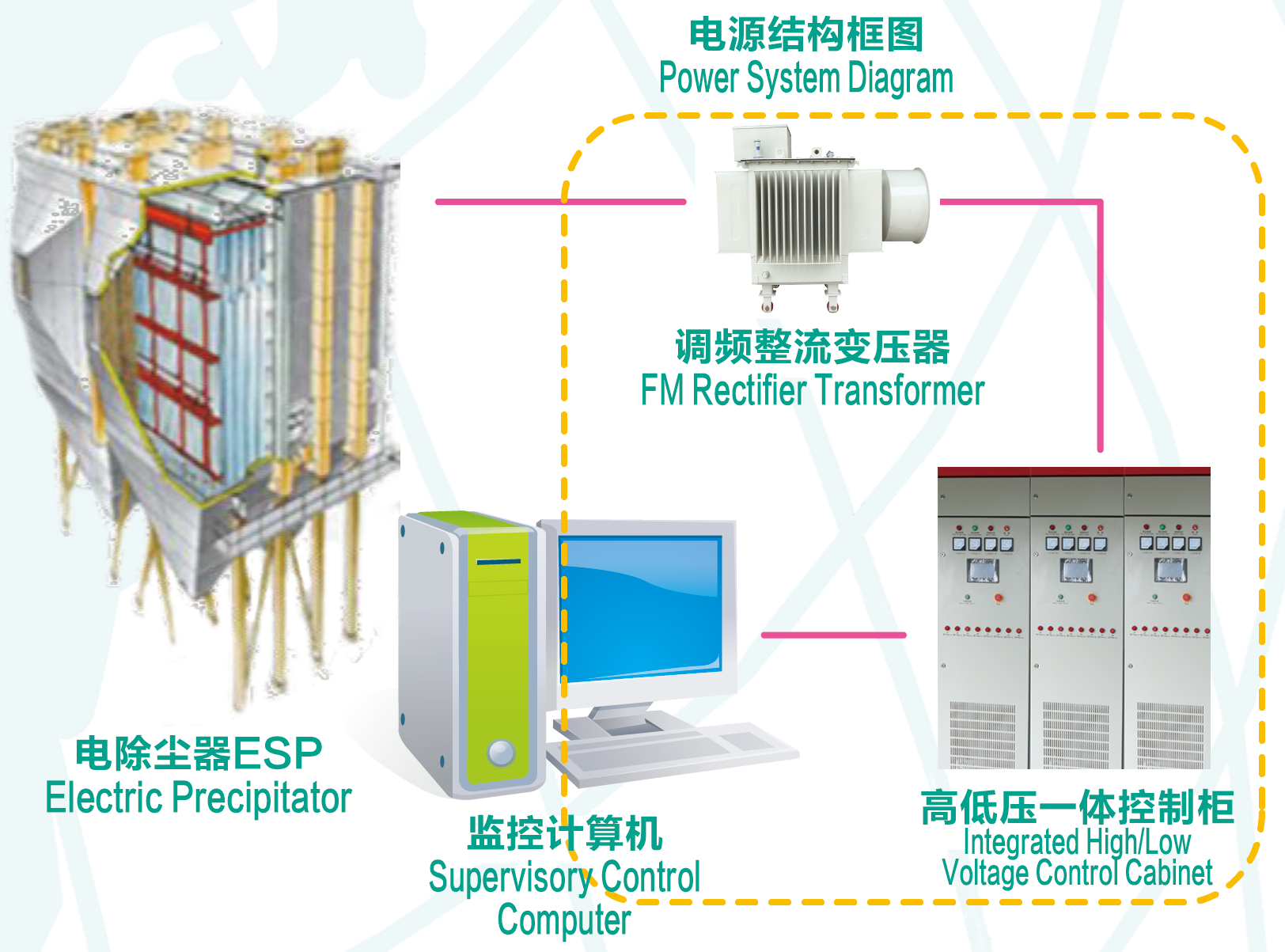

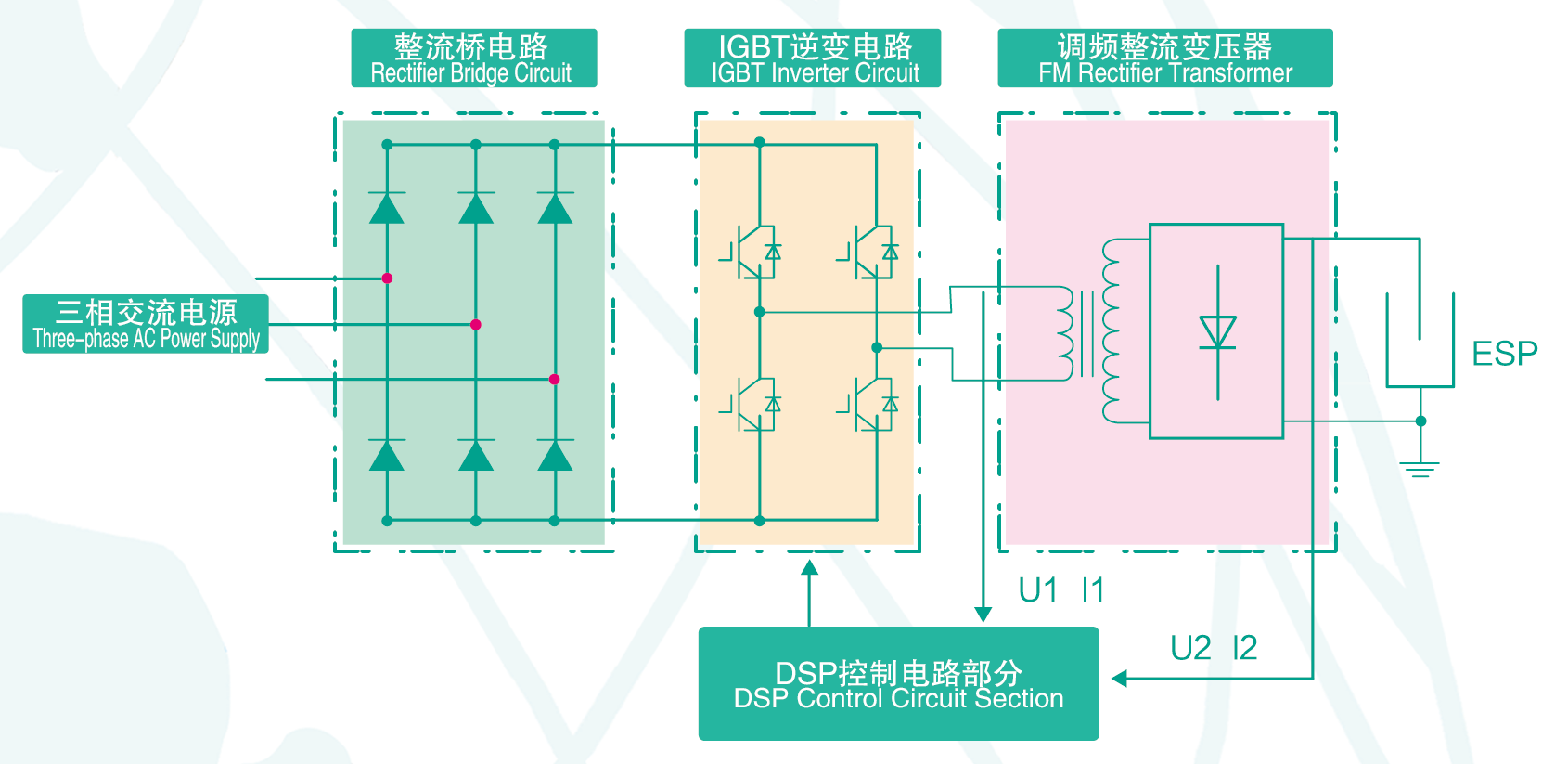

Power System Diagram
Power System Diagram

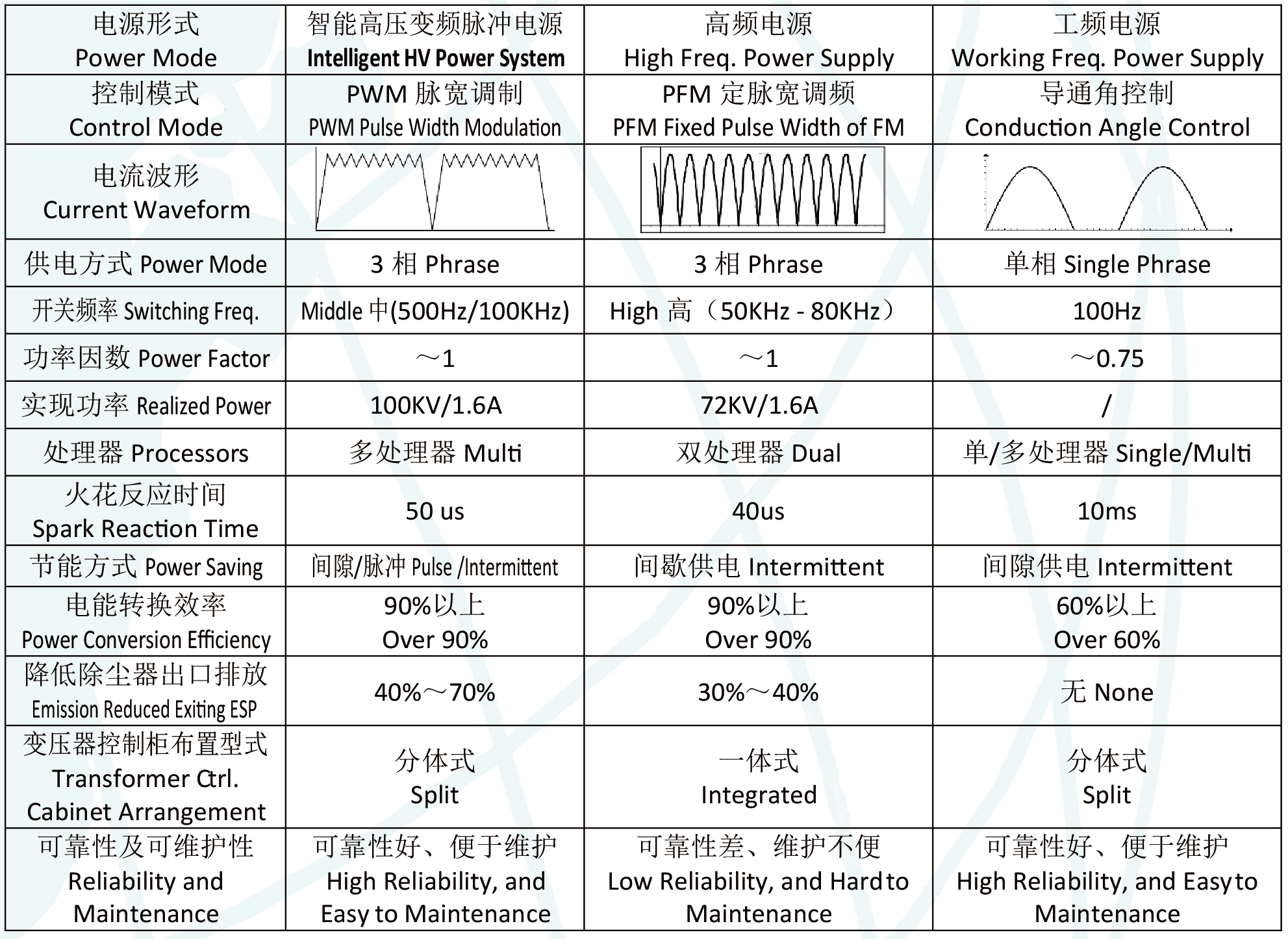

III. Technical Advantages：
1. Higher running voltage and greater input power
The Waveform of secondary voltage VF and secondary current IF after the occurrence of sparks
2. Parallel control system with multiple controllers
3. High power conversion efficiency
4. High power IGBT inverter rectification technology
5. Expert control system with fuzzy mathematics and neural network
6. Adopt power supply technology powered by multiple electric fields
7. Implement a real-time working condition of double closed loop control system
8. Use High-Low Voltage optimized control system to realize the control linkage of high voltage and low voltage. It can achieve low-power rapping or no-power rapping, which greatly improves the rapping performance.
9. High reliability and good maintainability
IV. Technical Parameters
1．Input power: Three-phrase AC 380V±10%，50Hz±2.0Hz
2．Rated Output DC Voltage：60kV、72kV 、80kV、100kV
3．Rated Output DC Voltage： 1000mA、1200mA、1400mA、1600mA、1800mA、2000mA、2400mA
4．Communication Interface: RS-485 /Ethernet、Modbus TCP/lP、Profibus DP
5．Cabinet Size：600x800x2200（Length x Width x Height）
6．Environmental Conditions: Supervisory control computer, Intelligent High-Voltage Variable Frequency Pulse Power System for Both High-Voltage and Low-Voltage, and its Controlling Equipment should be placed in door with working environment temperature from 0 ℃ ~ + 40 ℃; FM rectifier transformer should be placed outdoor with working environment temperature no higher than + 40 ℃ but no lower than a predetermined transformer oil pour point temperature; relative humidity 5% to 95%; altitude less than 2000m; no conductive, explosion dust around operating area; no corroded metal or gas or steam that may damage the insulation.
