SE-02 Series Composite High Temperature Fan Measuring and Controlling Cabinet
I. Product Summary
As the essential equipment in a high temperature fan control system, the Composite High Temperature Fan Measuring and Controlling Cabinet is a dedicated measuring and controlling device designed for various high temperature fan units.
A high temperature fan unit normally consists of a high temperature fan, ventilation door at the fan entrance, a main high-voltage motor, a slow motor, lube pump and fluid power coupler. This measuring and controlling device can achieve real-time monitoring, displaying and controlling of all equipment status and parameters of high temperature fan unit, including bearing temperature, fan vibration, fan speed, fan shell temperature, main motor coil temperature, oil temperature and pressure, ventilation door open degree. It can also establish connection and communication with DCS.
Our Cabinet uses programmable controller and high-resolution industrial programmable touchscreen graphic LCD display of well-known brands. The controller’s modularization brings ease to its extension and maintenance. The user-friendly UI of the touchscreen graphic display makes monitoring straightforward and easy to operate. Being a perfect combination of high-tech products, the Cabinet is highly reliable and is a showcase of modern technology and fashion.
Basing on years of production and operation experience, the software we developed can assure that the high temperature fan will always function in a safe and ideal condition.
The precision, straightforwardness, convenient handling, great controlling, and well-rounded protection of our Cabinet have won us great preference of fan makers and customers.
We provide corresponding types of composite high temperature fan measuring and controlling cabinets for all kinds of high temperature fan units.
II. Structure and performance
The high temperature fan control system consists of SE-02 Composite High Temperature Fan Measuring and Controlling Cabinet, sensors and transmitters, actuator, high/low-voltage motors, electric heater, or high-voltage coil motor fluid starting cabinet. The SE-02 Composite High Temperature Fan Measuring and Controlling Cabinet is the core of system measurement and control. Once linked with the central equipment—programed controller and smart digital microprocessor meters, or programmable controller and industrial programmable touchscreen graphic display—the system will become a complete measuring and controlling device with software program and configuration. It has the following functions:
◇ switching between on-site/center control and manual/automatic mode
◇ signal collection, process and transmission
◇ equipment status real-time monitoring
◇ displaying and setting equipment parameters
◇ interlock control and operation of the equipment
◇ circuit automatic regulation
◇ protection and malfunction alarm
◇ connection and communication with factory DCS
Composite Measuring and Controlling Cabinet
Power: three-phase four-wire, 380/220V±15%，50Hz，14KW
Measurement accuracy: 1.5%
Working condition:
Temperature: -10~55 ℃
Relative humidity: ≤90%
Atmospheric pressure: 86~106 Kpa
No corrosive gas or conductive dust in the ambient
Dimensions: 800W×2000H×650D mm
Double doors (one in the front and one in the back)
IP42
Programmable Controller
Model: FX2N (Mitsubishi, Japan)
Basic unit: FX2N-128MR or 64MR
Special extension module: FX2N-4AD, 12bit, 4 channels, 4~20 mA
Industrial Programmable Touchscreen Graphic Display
Model: Pro-face GP2501 (Digital, Japan)
Display: LCD, 640×480, 10.4”
Brightness: 4 levels
Touchscreen keys: 32×24 key/screen
FLASH: 4MB
SRAM 256 KB
Interface: Ethernet
Extension: SIO
III. Models of Composite High Temperature Fan Measuring and Controlling Cabinets
As the essential equipment in a high temperature fan control system, the Composite High Temperature Fan Measuring and Controlling Cabinet is a dedicated measuring and controlling device designed for various high temperature fan units.
A high temperature fan unit normally consists of a high temperature fan, ventilation door at the fan entrance, a main high-voltage motor, a slow motor, lube pump and fluid power coupler. This measuring and controlling device can achieve real-time monitoring, displaying and controlling of all equipment status and parameters of high temperature fan unit, including bearing temperature, fan vibration, fan speed, fan shell temperature, main motor coil temperature, oil temperature and pressure, ventilation door open degree. It can also establish connection and communication with DCS.
Our Cabinet uses programmable controller and high-resolution industrial programmable touchscreen graphic LCD display of well-known brands. The controller’s modularization brings ease to its extension and maintenance. The user-friendly UI of the touchscreen graphic display makes monitoring straightforward and easy to operate. Being a perfect combination of high-tech products, the Cabinet is highly reliable and is a showcase of modern technology and fashion.
Basing on years of production and operation experience, the software we developed can assure that the high temperature fan will always function in a safe and ideal condition.
The precision, straightforwardness, convenient handling, great controlling, and well-rounded protection of our Cabinet have won us great preference of fan makers and customers.
We provide corresponding types of composite high temperature fan measuring and controlling cabinets for all kinds of high temperature fan units.
II. Structure and performance
The high temperature fan control system consists of SE-02 Composite High Temperature Fan Measuring and Controlling Cabinet, sensors and transmitters, actuator, high/low-voltage motors, electric heater, or high-voltage coil motor fluid starting cabinet. The SE-02 Composite High Temperature Fan Measuring and Controlling Cabinet is the core of system measurement and control. Once linked with the central equipment—programed controller and smart digital microprocessor meters, or programmable controller and industrial programmable touchscreen graphic display—the system will become a complete measuring and controlling device with software program and configuration. It has the following functions:
◇ switching between on-site/center control and manual/automatic mode
◇ signal collection, process and transmission
◇ equipment status real-time monitoring
◇ displaying and setting equipment parameters
◇ interlock control and operation of the equipment
◇ circuit automatic regulation
◇ protection and malfunction alarm
◇ connection and communication with factory DCS
Composite Measuring and Controlling Cabinet
Power: three-phase four-wire, 380/220V±15%，50Hz，14KW
Measurement accuracy: 1.5%
Working condition:
Temperature: -10~55 ℃
Relative humidity: ≤90%
Atmospheric pressure: 86~106 Kpa
No corrosive gas or conductive dust in the ambient
Dimensions: 800W×2000H×650D mm
Double doors (one in the front and one in the back)
IP42
Programmable Controller
Model: FX2N (Mitsubishi, Japan)
Basic unit: FX2N-128MR or 64MR
Special extension module: FX2N-4AD, 12bit, 4 channels, 4~20 mA
Industrial Programmable Touchscreen Graphic Display
Model: Pro-face GP2501 (Digital, Japan)
Display: LCD, 640×480, 10.4”
Brightness: 4 levels
Touchscreen keys: 32×24 key/screen
FLASH: 4MB
SRAM 256 KB
Interface: Ethernet
Extension: SIO
III. Models of Composite High Temperature Fan Measuring and Controlling Cabinets

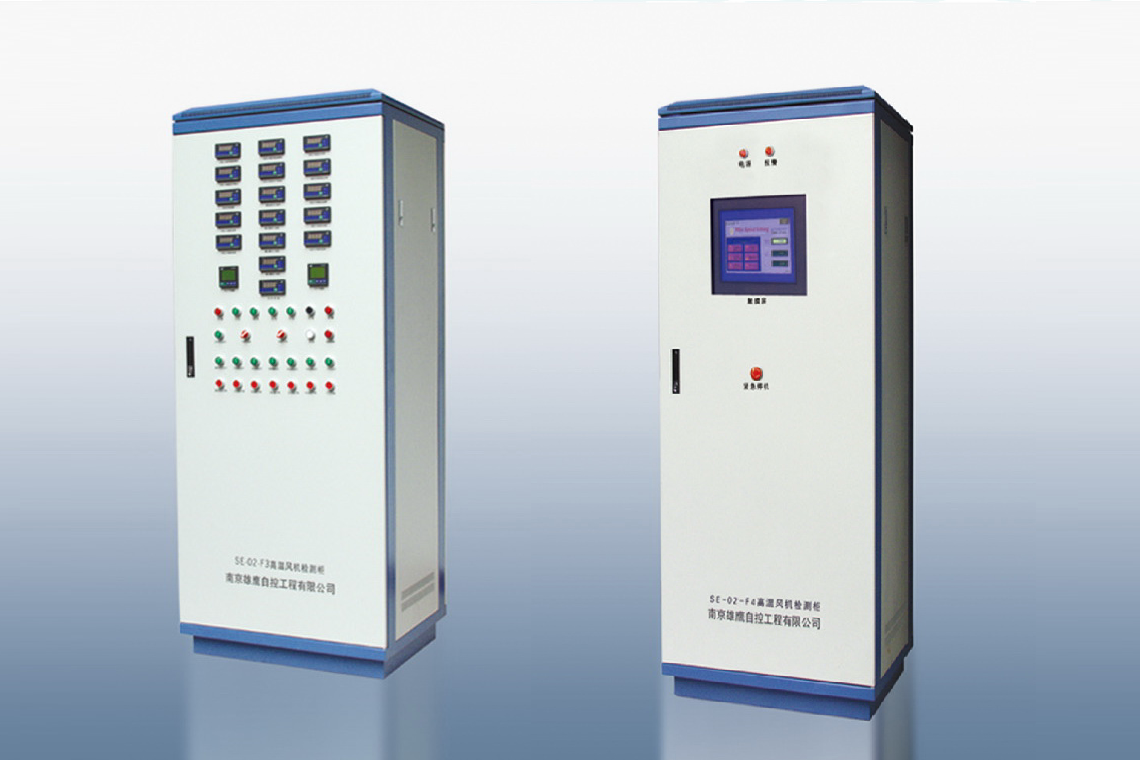

| Features of High Temperature Fan Unit | Composite High Temperature Fan Measuring and Controlling Cabinets | |
| Model | Core Technology | |
|
High-Voltage Squirrel-Cage Main Motor Fan Bearing Lube Station Hydraulic Coupler Speed Control Low-Speed Fan Gearing |
Se-02-F1 | Programmable Controller, Smart Digital Microprocessor Meters |
| SE-02-F4 | Programmable Controller, Programmable Touchscreen Graphic Display | |
|
High-Voltage Coil Main Motor Pneumatic Fluid Rheostat Fan Bearing Lube Station Entrance Ventilation Door Controlling Full-Speed Fan Gearing |
Se-02-F2 | Programmable Controller, Smart Digital Microprocessor Meters |
|
High-Voltage Squirrel-Cage Main Motor Fan Bearing Lube Station Hydraulic Coupler Speed Control With External Cycle Low-Speed Fan Gearing |
Se-02-F3 | Programmable Controller, Smart Digital Microprocessor Meters |
