SE-01 Distributed Control System (DCS)
I. Product Summary
The production process in 21st century is has set a higher standard for control system in terms of reliability, computing capability, flexibility, openness, control and monitor level and prices. Faced with these challenges, we cooperated with world-known companies and developed the new generation of DCS to meet the customers’ needs about control scale and level.
II. Features
The System is integrated with state-of-the-art electronic manufacturing technology, computer technology, network communication, proficubs technology, graphic processing technology and automatic control theory.
The System is completely open, with great compatibility.
The equipment and technology are integrated by programmable controller and profibus.
The System is flexible and modularized, open to extension.
The System is equipped with powerful software which makes programming and configuration easy and practical.
The System’s interface is rich in content, providing better monitoring and management.
According to features of specific construction and customers’ need, we can provide low-cost and high-performance system solutions with products from well-known companies, including Siemens, ABB, Schneider, AB and Mitsubishi.
III. System Composition
(1) Control center and engineering station
Computer of well-known brand
Large screen LED
color ink-jet printer, 600×600dpi
UPS power
Control panel
Windows OS and industrial control application
(2) Field station
CPU, power module
I/O module, communication module, etc.
Control cabinet
(3) 100Mbps industrial Ethernet
(4) Standard Profibus
IV. Performance
Operation tips
Data collection and processing on site
Sequential control
Loop control
Information exchange and communication
Real-time data display of process variable
Display and record of tendency
Monitoring operation status
Self-diagnosis and malfunction alarm
Processing, recording, printing and tabulation of equipment and production information
Online configuration
Access to production and distribution management system
V. Services
We regard customers as our priority. Based on the characteristics of DCS, we provide comprehensive service covering the whole process of factory construction and production, making sure that customers will receive the maximum benefit from our DCS products.
Technical advisory and initial service for initial options and project design
Equipment purchase and integrated manufacturing
On-site installation guidance
Programming and configuration
Off/on line debugging
On-site production operation service
Complete and comprehensive blueprint, operation and maintenance manual and programming file
Operation and maintenance training

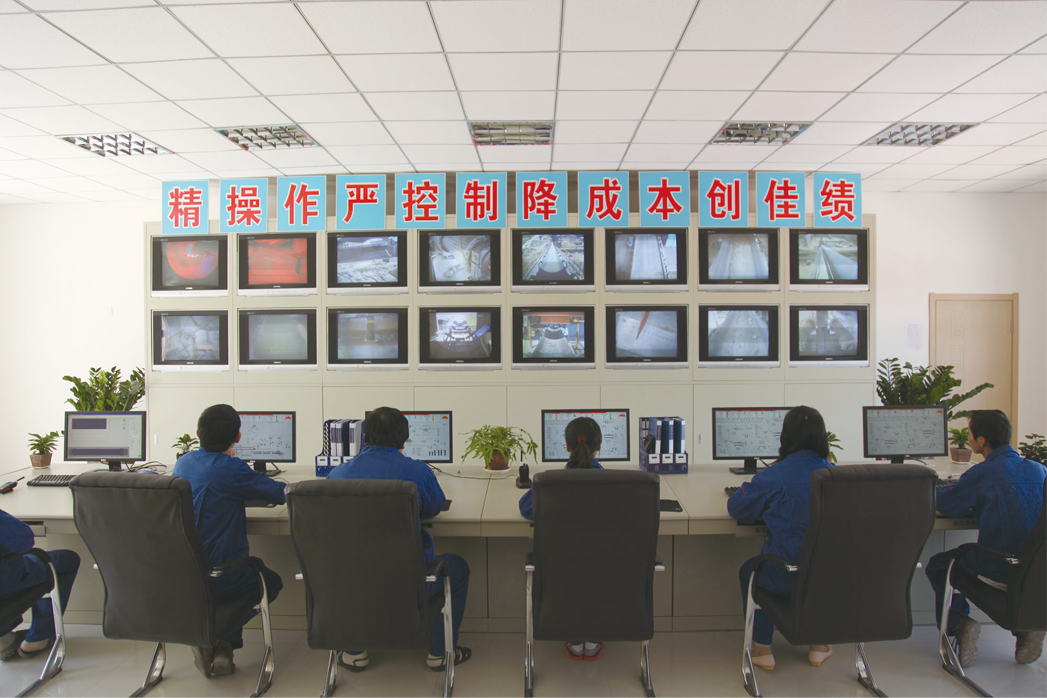

Control Center

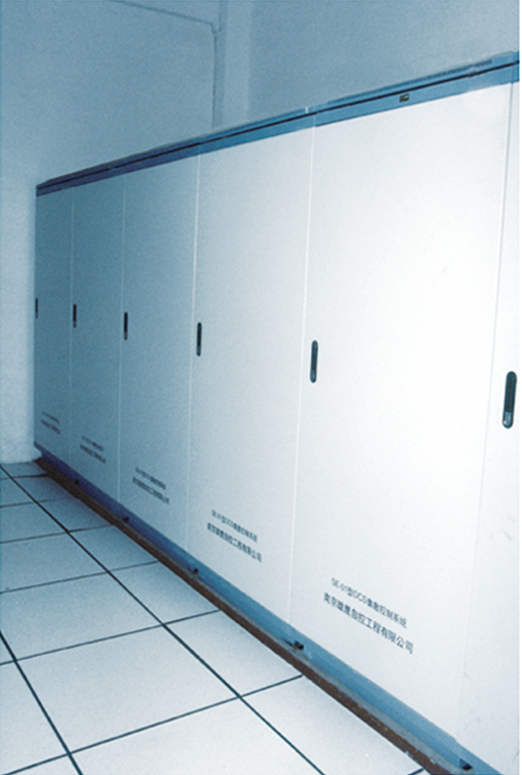

Field Station
